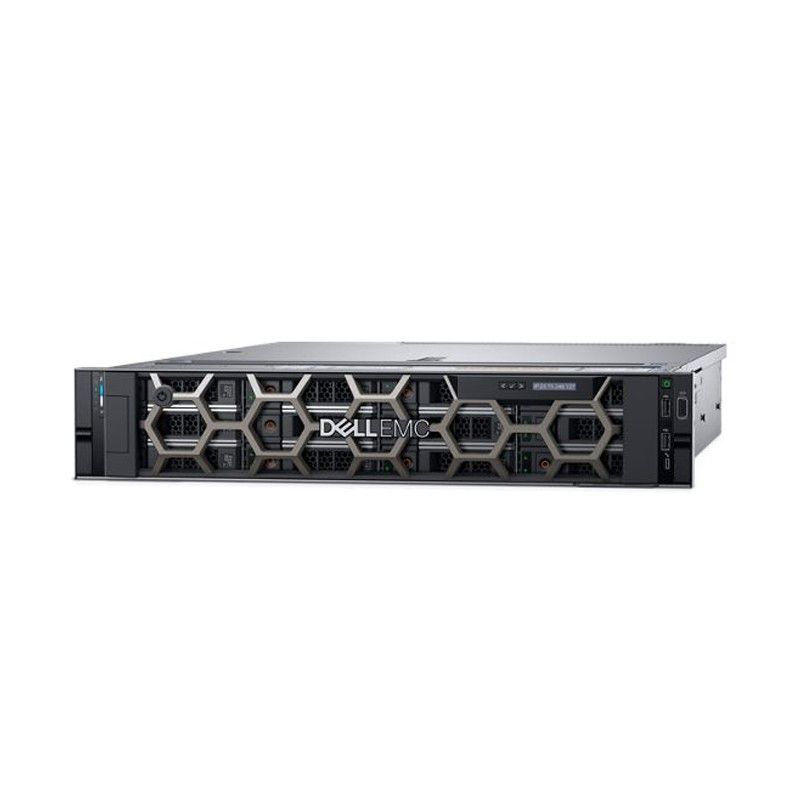

The Dell 2U R540 5218 Server is a powerful 2U server designed for high-performance computing. With a 16 core processor and 32 threads, this server is ideal for demanding applications and workloads.
Quick Spec
Table 1 shows the quick spec of Dell 2U R540 5218 Server.
| Parameter | Value |
|---|---|
| Processor | Intel Xeon Silver 5218 (16 core, 32 thread, 2.30 GHz, 22 MB) |
| RAID Controller | H330 |
| Optical Drive | DVD |
| Power Supply | 750W |
Product Features
- 16 core processor for high-performance computing
- 32 threads for heavy multitasking
- Reliable H330 RAID controller for data protection
- DVD drive for software installation
- Fast SAS storage for quick data access
Product Applications
- Virtualization
- Database management
- High-performance computing
Supported Options
Table 2 shows the supported options of Dell 2U R540 5218 Server.
| Accessory | Model |
|---|---|
| Memory | 32GB DDR4 |
| Storage | 1TB SAS 10K |
| Network Adapter | Intel X710-T2L Dual Port 10GbE |
Compare to Similar Items
Table 3 shows the comparison to similar items of Dell 2U R540 5218 Server.
| Model | Processor | Memory | Storage |
|---|---|---|---|
| Dell 2U R540 4216 Server | Intel Xeon Silver 4216 (16 core, 32 thread, 2.10 GHz, 22 MB) | 8GB DDR4 | 600GB SAS 10K |
| Dell 2U R540 4214 Server | Intel Xeon Silver 4214 (12 core, 24 thread, 2.20 GHz, 16.5 MB) | 8GB DDR4 | 600GB SAS 10K |
Dell 2U R540 5218/8G*1/600G SAS 10K*1/H330/DVD/750W*1/3.5-8 Specification
DELLR540-18 Specifications |
|
| Product Model | DELLR540-18 |
| Processor | 5218 (16 core, 32 thread, 2.30 GHz, 22 MB) |
| Memory | 8G*1 |
| Hard Drive | 600G SAS 10K*1 |
| RAID Controller | H330 |
| Optical Drive | DVD |
| Power Supply | 750W*1 |
| Form Factor | 3.5-8 |
| Cache Memory | 22 MB |
| Maximum Supported RAM | 1.5 TB |
| Maximum Memory Speed | 2933 MHz |
| Network Interface | 4x 1GbE |
| Expansion Bays | 8 x 3.5" SAS/SATA |
| Expansion Slots | 1 x PCIe Gen3 x16, 2 x PCIe Gen3 x8, 1 x PCIe Gen3 x8 (For Storage) |
| Management | iDRAC9 Basic |
| Operating System | Not Included |
| Dimensions | 86.8 x 482.4 x 750.4 mm |
| Power Consumption | 750W |
